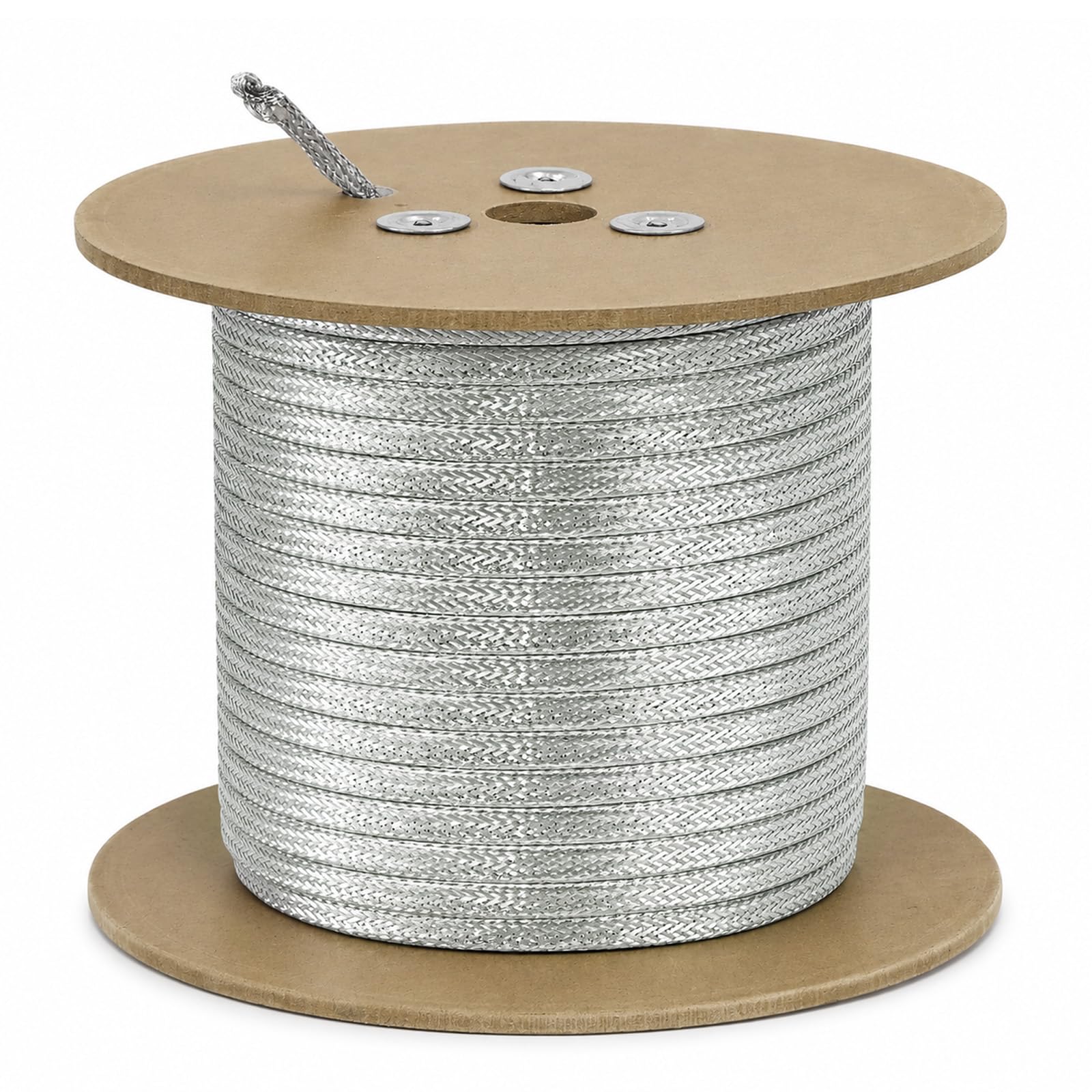

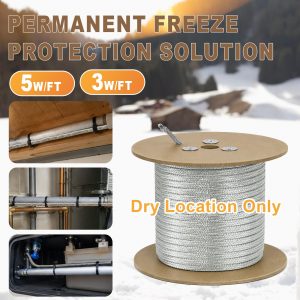

HEATIT HISFK Self Regulating Heating Cable, Dry Location,Industrial Grade, 100ft
$140.81 – $170.95
Item: Self Regulating Heating Cable Kit 100ft
Mounting Location: Dry
| HISFK1-100-3 | HISFK1-100-6 | HISFK2-100-6 | |
| Voltage | 120V | 120V | 240V |

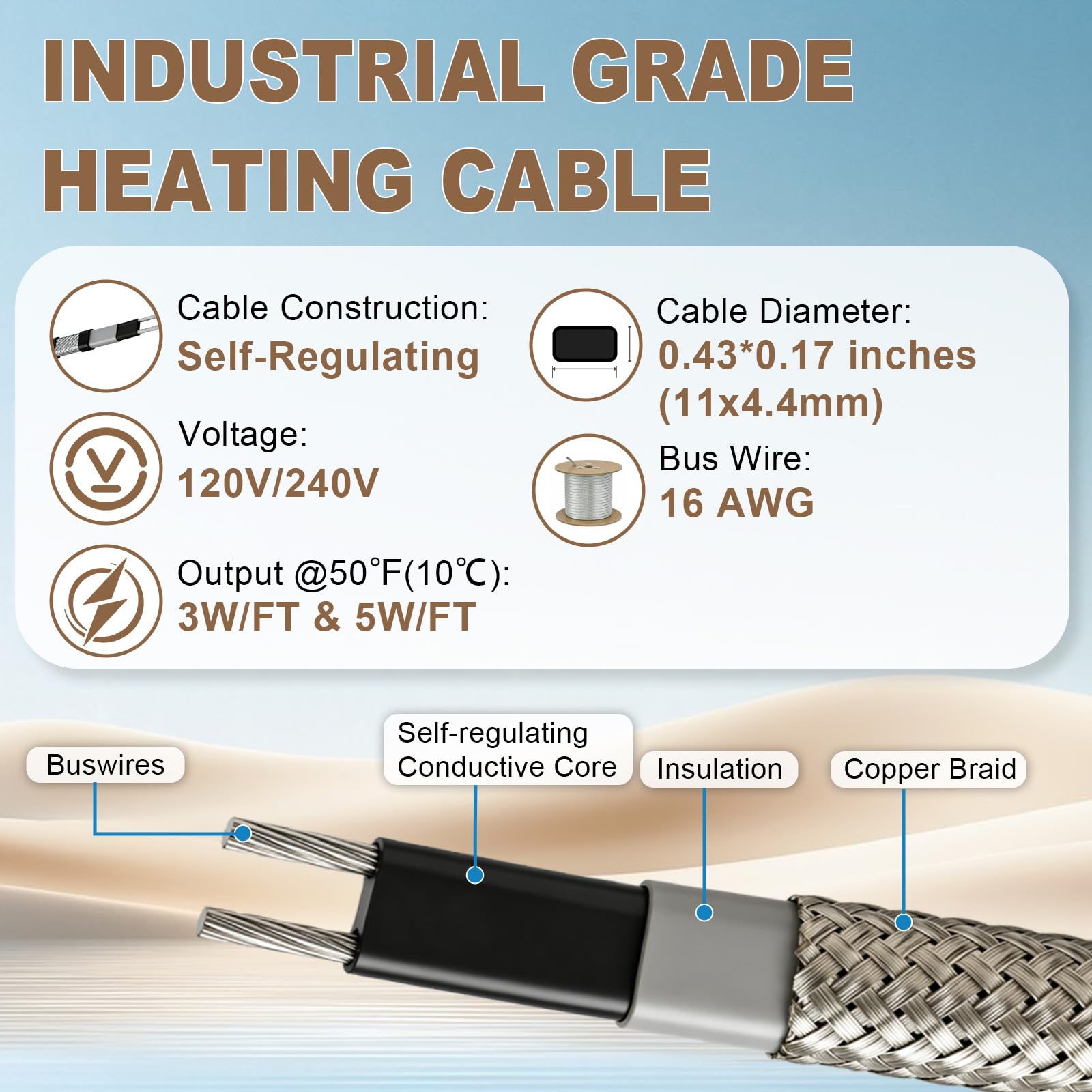

| Cable Type | Self-Regulating | Self-Regulating | Self-Regulating |
| Cable Material | Copper | Copper | Copper |
| Cable Cover Material | Thermoplastic Elastomer | Thermoplastic Elastomer | Thermoplastic Elastomer |
| Overall Width | 7/16 in | 7/16 in | 7/16 in |
| Number of Conductors | 2 | 2 | 2 |
| Frequency | 60 Hz | 60 Hz | 60 Hz |
| Watts per Foot @40F | 4W | 7W | 7W |
| Amps per Foot @40F | 0.03A | 0.04 A | 0.025A |
| Watts per Cable @40F | 400W | 600W | 600W |
| Amps per Cable @40F | 2.5A | 4.2A | 2.1A |
| Max. Circuit Length | 250 ft | 200ft | 350ft |
| Max. Operating Temp. | 150 Degrees F | 150 Degrees F | 150 Degrees F |
| Min. Operating Temp. | -40 Degrees F | -40 Degrees F | -40 Degrees F |
| Standards | cULus | cULus | cULus |

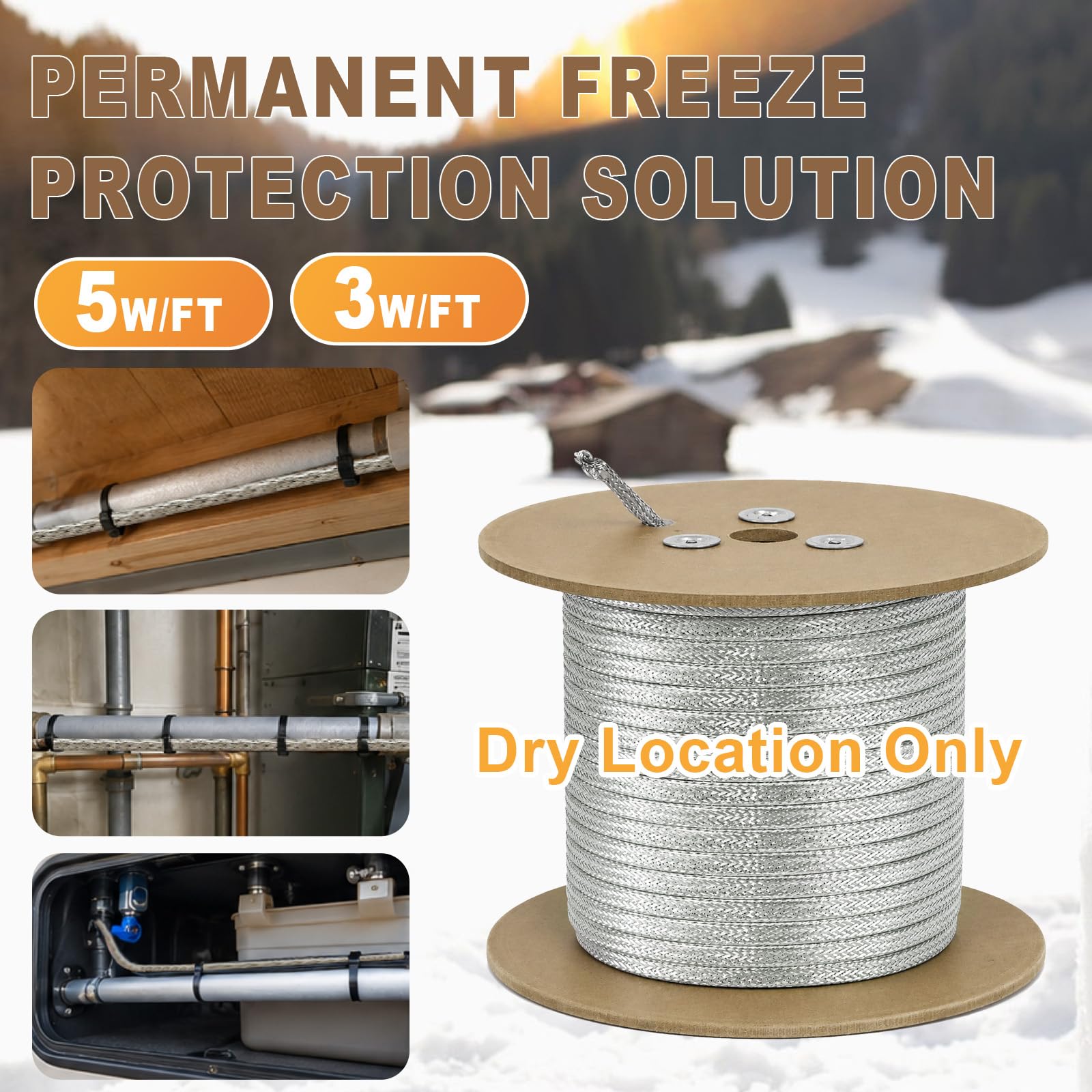

Features: Keep Water Pipes From Freezing, Prevent Freeze-up Problems On Freezer Doors, Drain Pans, Drain Lines
For Use With: Plastic or Metal Pipes Up to 8 in Dia, Water Pipe System
Standards: UL515,UL1588,IEEE515.IEEE515.1 and CAN/CSA-C22.2 No. 130-03

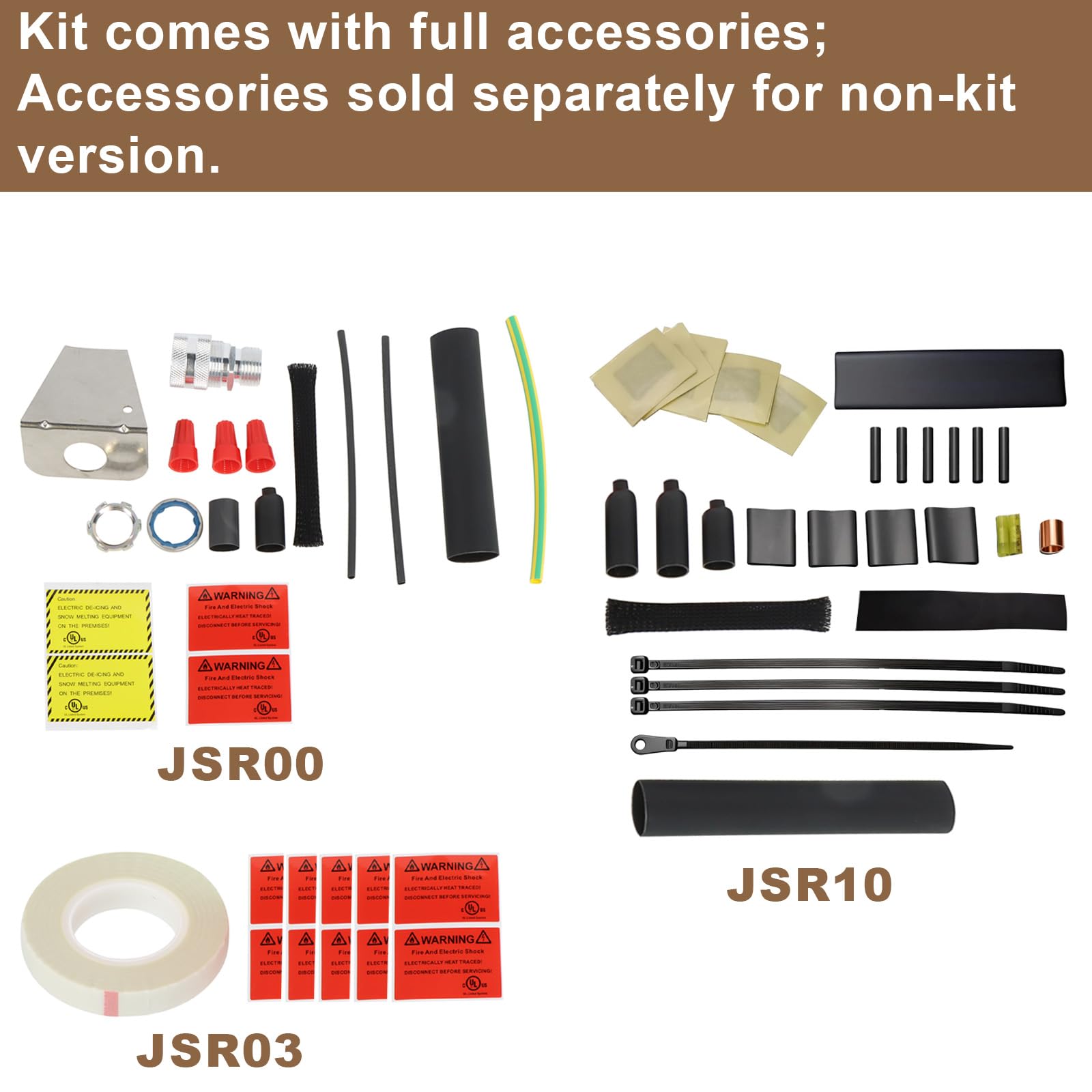

Includes: Cable,JSR00*2,JSR10,JSR03
| Voltage | 120V, 240V |
|---|---|
| Wattage Output | 3W, 6W |
