HEATIT PLSR1 Self Regulating Heating Cable, Wet or Dry,120VAC
$49.99 – $179.99
- Automatically adjust heat output according to the ambient temperature conditions. Under cooler conditions the heat output increases, and as the temperature rises the output decreases to save on energy.

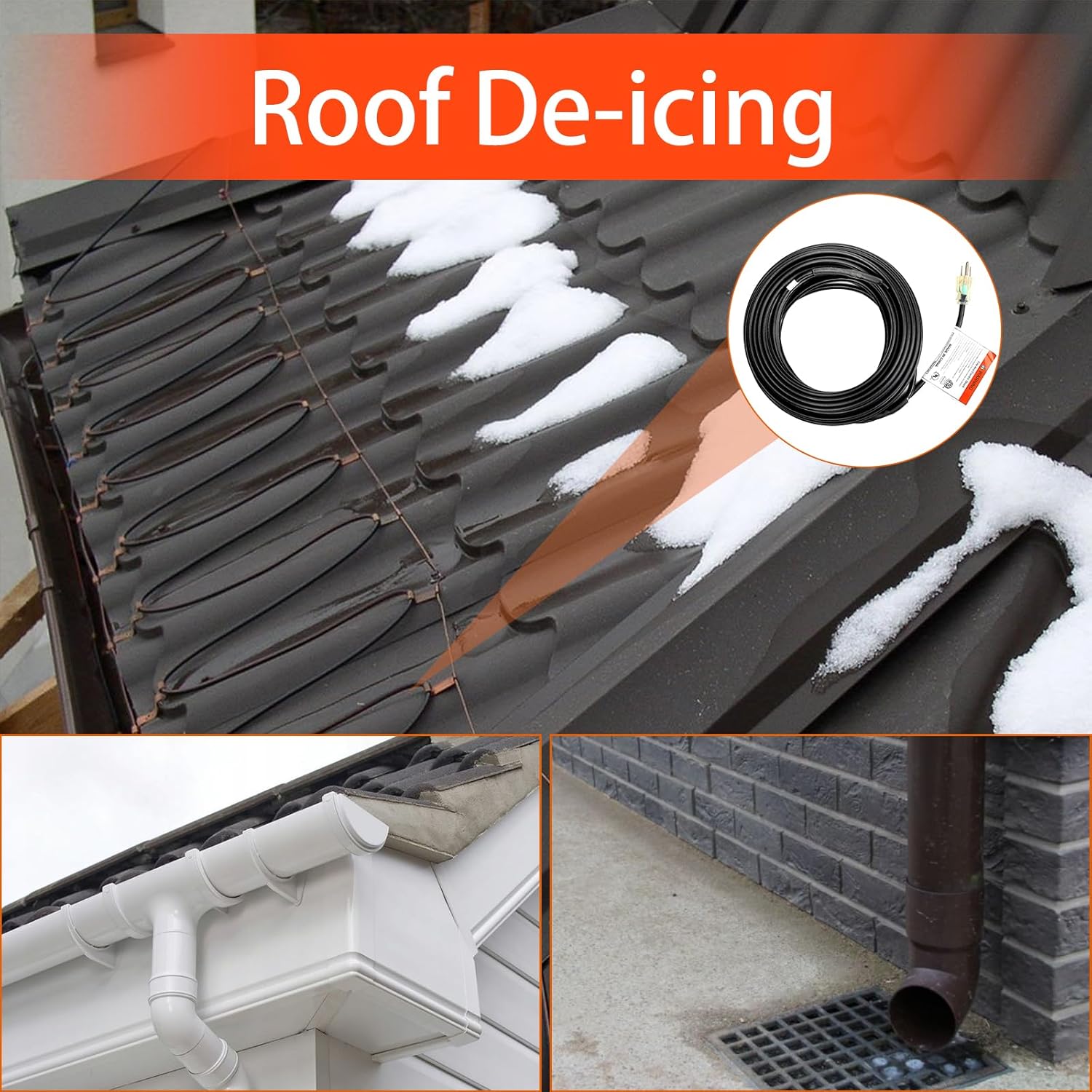

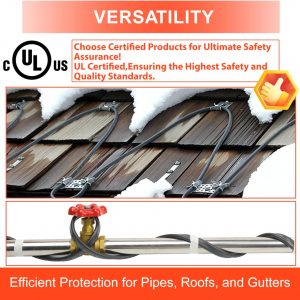

- Suitable for plastic or metal pipes, gutters and downspouts. Provide pipe, roof, and gutter system protection from damage due to freezing, and can be used in residential and commercial applications.

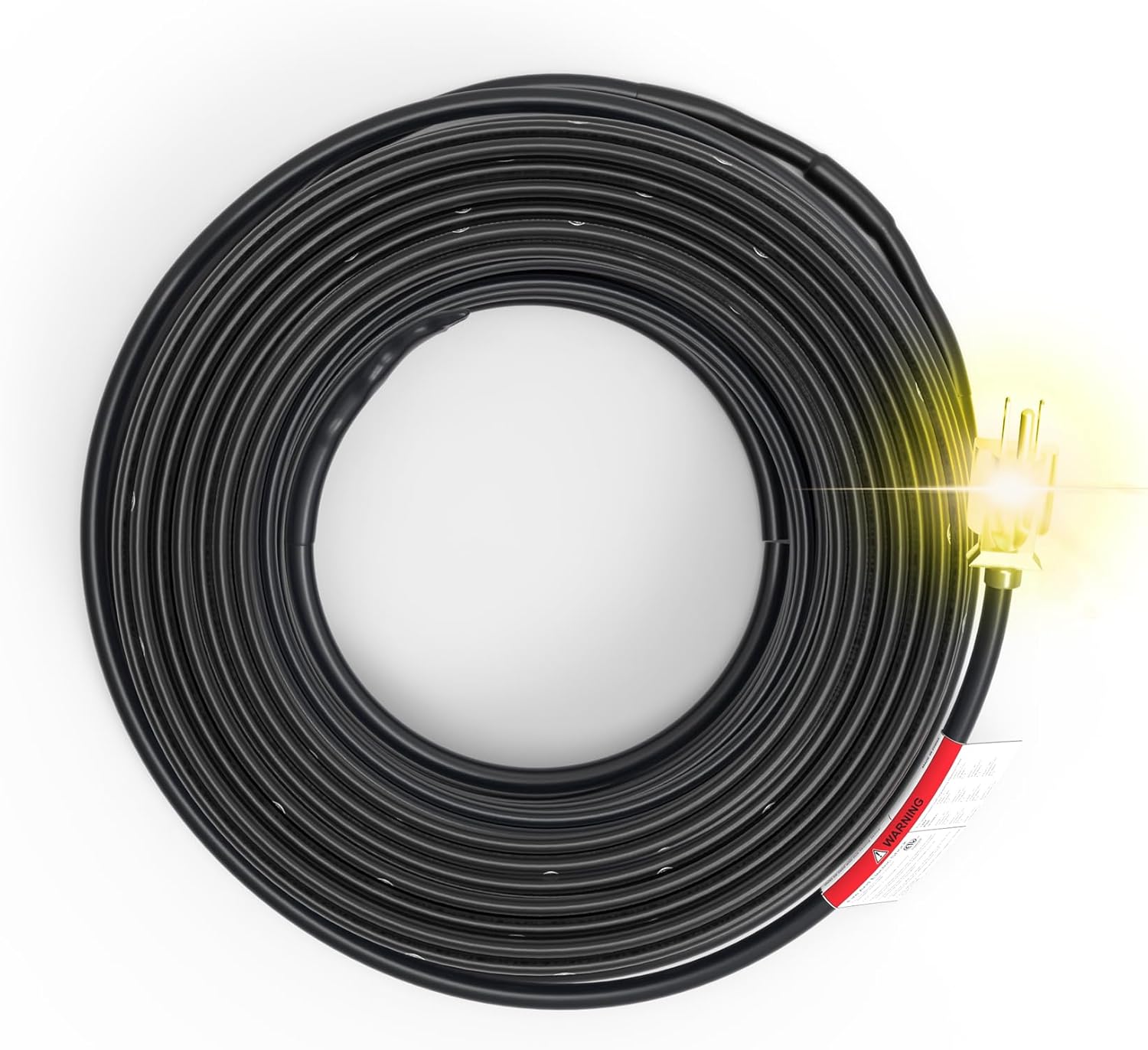

- Pre-assembled cable lengths include a 30 in power cord and plug. Use 30-mA ground fault protection on each heating cable branch circuit for maximum protection.
- Easy of installation, as the cable can be overlapped without the risk of becoming overheated or burnt. Before installing or servicing, ensure that all power to circuits is OFF.
- Use only fire-resistant insulation, such as fiberglass or preformed foam. Do not embed heating cable in the insulation. Use 1/2” to 1” fiberglass tape or plastic cable ties when attaching cable to pipe. Do not use wire or metal clamps.
- Self-regulating 120V heating cable provides freeze protection in short plastic or metal pipes. Use in wet or dry locations; in water pipe system and pipes up to 2-1/2″ dia. Easy to install, attach, and insulate. NEMA 5-15 plug.

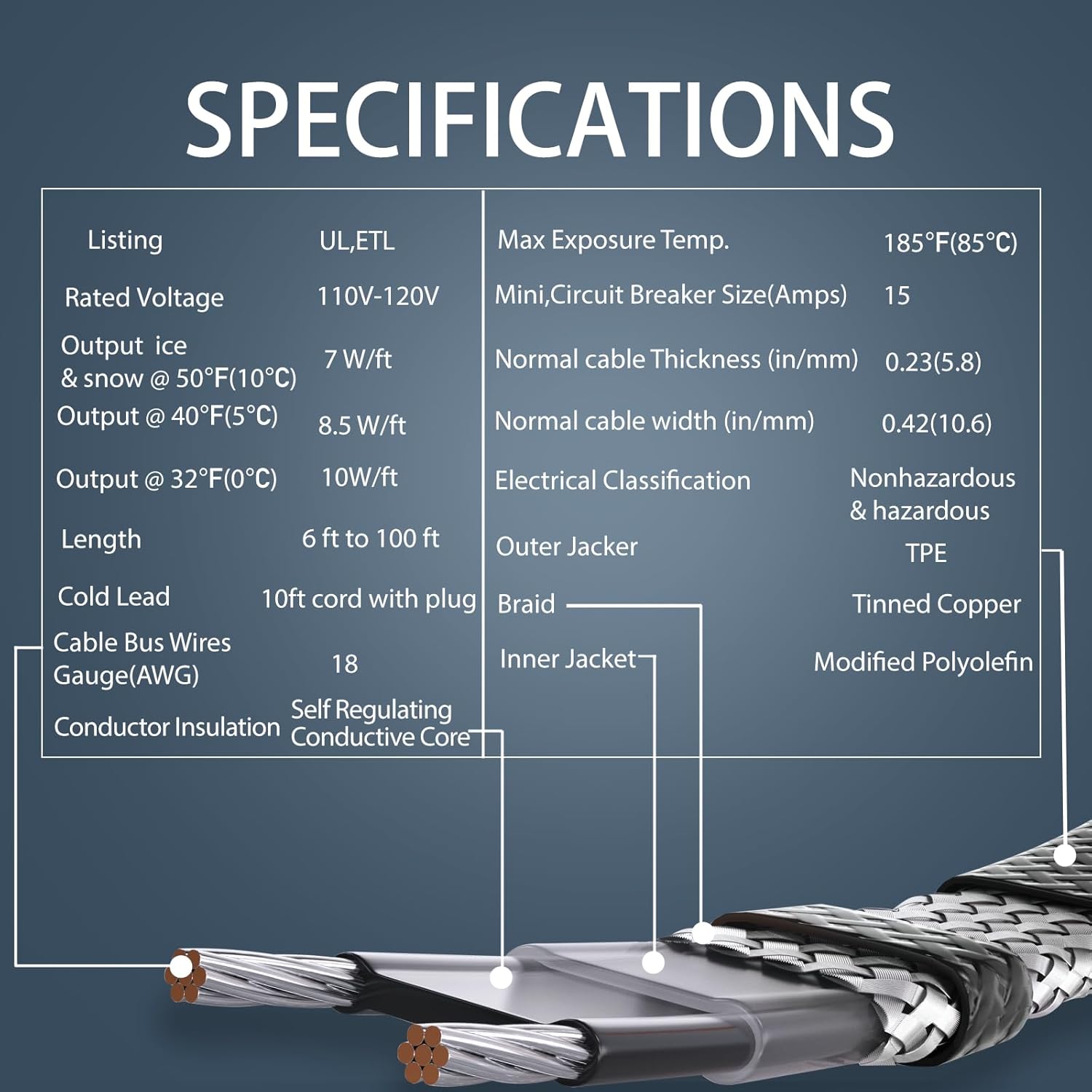

- Heater Voltage: 120VAC
- Watts per Foot @ 40F: 6
- Amps per Foot @ 40F: 0.05
- Number of Conductors: 3
- Plug Type: GFCI

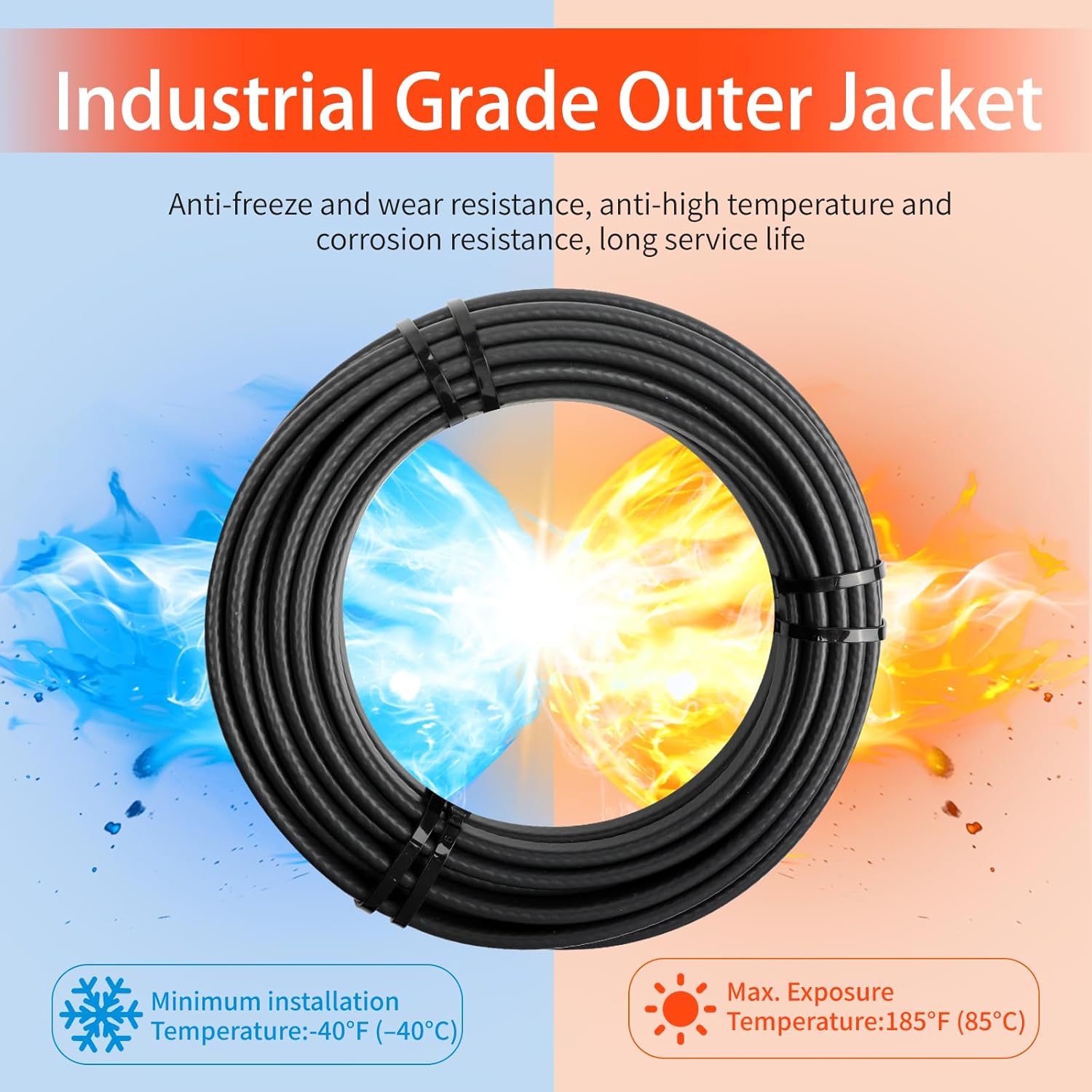

- Features: Waterproof, SJTW
- For Use With Short Pipes, Water Pipe System, Plastic or Metal Pipe Up to 2 1/2″ Dia.
- Standards: UL 515,UL1588,IEEE 515.1,CSA C22.2#130

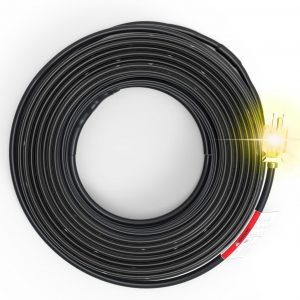

- Includes: Heating Cable and Power Cable with Plug
| Size | 6feet, 12feet, 18feet, 24feet, 50feet, 75feet, 100feet |
|---|
