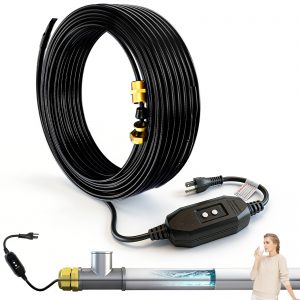

- HEATIT is registered Trademark by zhukeshi(We didn’t authorize other sellers in Amazon.com). Suitable for use on rigid plastic and metal water pipes.( including inlet pipe,drain pipe, sewer , palm tree frost protection etc). Protect pipes up to 1.5″ in diameter. For a better freeze protection, at least 1/2 inch thick insulation material is recommended, especially for extremely cold weather.
- Industrial grade self regulating heating cable. The cable output will adjust automatically based on the ambient temperature at each point along the cable. No worry about the overheat risk. More Safe. Can be used by straight, spiral and overlap. More functional.
- Pre-assembled, easy to install. Including grounded plug with light, built in thermostat(turn the cable 37F on 50F off), and instructions. Easy to install and use. 120 volt, 3 watts/ft at 50 degrees F. Energy-efficient.
- ETL approved. 2 ft 18/3 cold lead with plug. Industrial grade heat shrinkage tube for connection.The lowest installation temperature of this heating cable is -10℃. The minimum bending radius is 1 inch.Tough XLPE as inner insulation and weather resistant P (high-low temperature) as out jacket. Ingress Protection 65. Approved for water filled rigid plastic pipe and metal pipe. Durable
- Testing the cable before the installation. Uncoil the cable, plug in the heating cable and then put the thermostat part of the cable into an ice bucket for few minutes. When the temperature is below 37F, the thermostat will energize the cable to work. Normally you can feel the slight warm on the heating cable in few minutes. Two year limited warranty – If you are not completely satisfied with HEATIT heating cable, please feel free to contact us in any time, we’ll try our best to solve your issue.
- Sufficient heating cable inventory in warehouse of Chicago area. Normally order are shipped within 7 days after order released. Expediting delivery service is available.
| SIZE | 3-feet, 6-feet, 9-feet, 12-feet, 15-feet, 18-feet, 24-feet, 30-feet, 40-feet, 60-feet, 80-feet, 100-feet, 120-feet |
|---|
SPECIFICATIONS
| JHSF1 | JHSF | JHSF1-CT | HTM | HISD | |
| Available for pipe freezeing protection | ✓ | ✓ | ✓ | ✓ | ✓ |
| Available for roof deicing | ✓ | No | ✓ | No | No |
| Install by Spiral,Wrap or Cross | ✓ | ✓ | ✓ | ✓ | No |
| Build in thermostat | No | ✓ | No | No | ✓ |
| Cable Structure | Self regulating | Self regulating | Self regulating | Self regulating | Regular (Constant wattage) |
| Output @10°C | 5w/ft | 3w/ft | 5w/ft | 3w/ft | 7w/ft Constant |
| Used on not always water filled pipes | ✓ | ✓ | ✓ | ✓ | No |
| Length of cold lead | 3ft | 2ft | 6ft | No | 2ft |
| Water proof grade(end seal) | IP65 | IP65 | IP68 | IP65 | IP65 |
| Water proof grade(connection) | IP65 | IP65 | IP65 | IP65 | IP65 |
JHSF INSTRUCTION MANUALShipping
* On hand inventory in US and Canada warehouses. It normally takes 1-3 business days for us to process your order. Please note that this does not include holidays and weekends.
* Shipment normally takes 5-8 business days to arrive, but can take up to 12-15 business days around busier periods such as holidays etc.
* Shipping time is estimated and commences from the date of shipping, rather than the date of the order, and can take longer than expected date due to an invalid address, customs clearance procedures or other causes.
* Please submit a ticket within 60 days of shipment if the package does not arrive in time, our representative will get back to you within 24 hours. Note that overdue requests may not be accepted.
