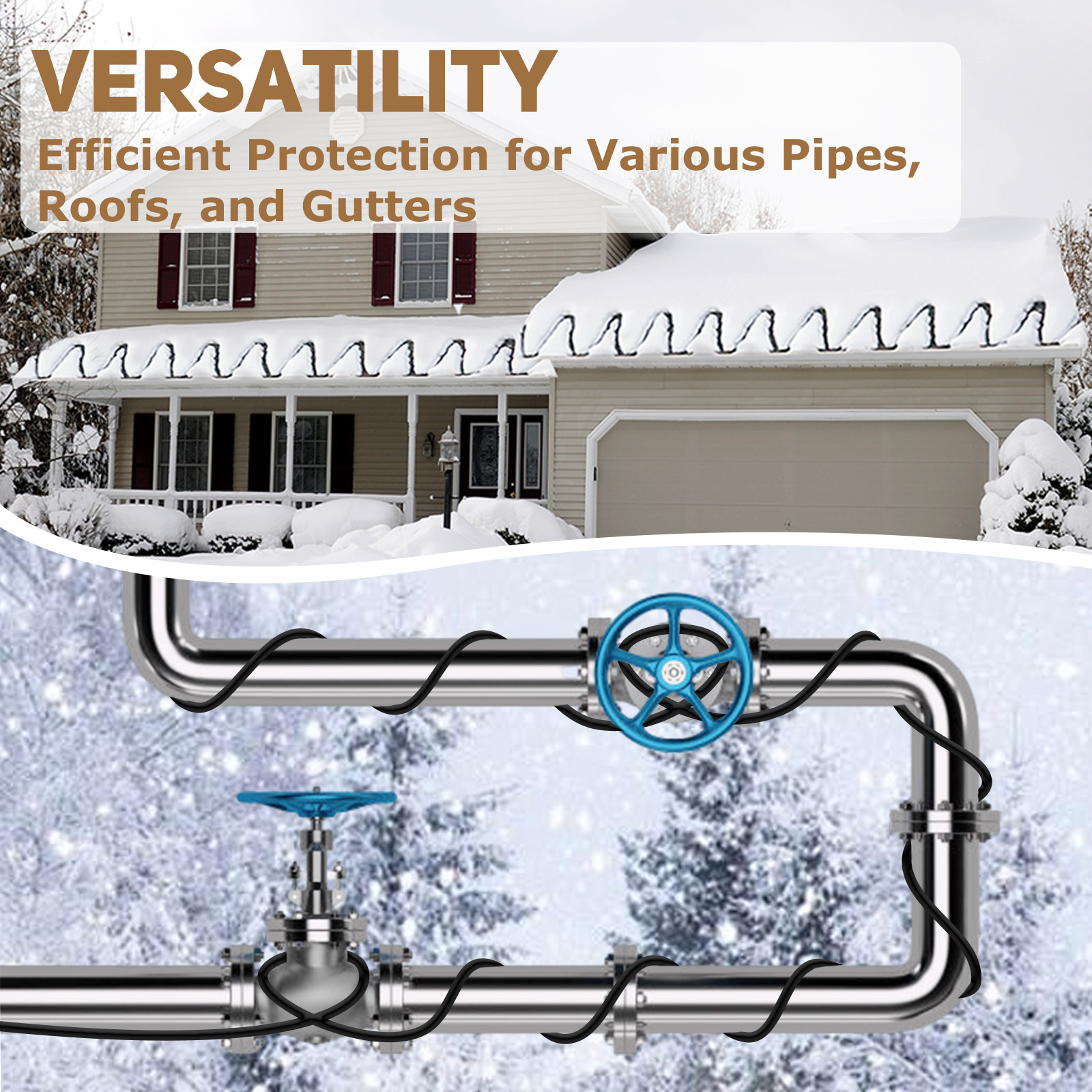

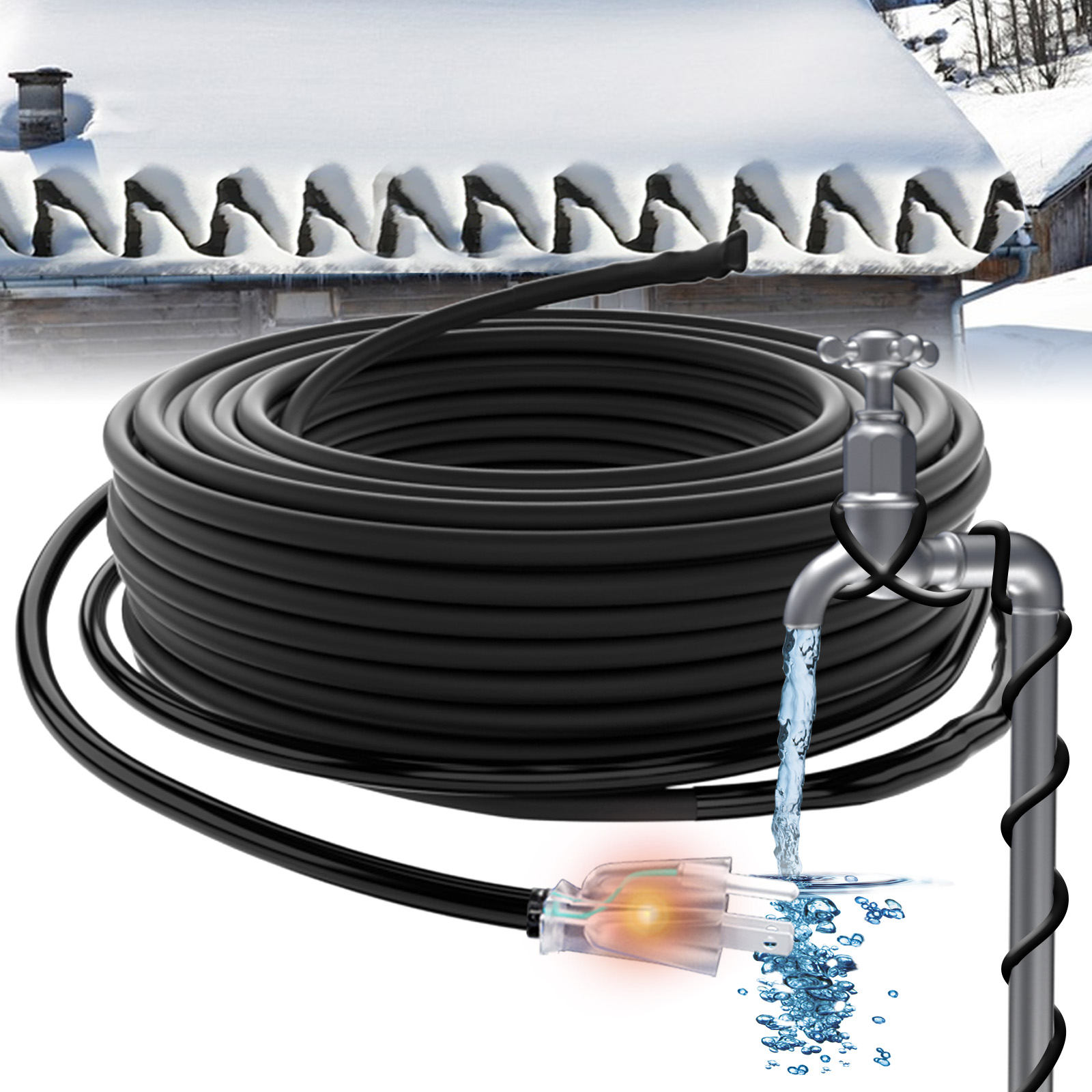

- Suitable for use on plastic and metal water pipes( including inlet pipe,drain pipe, sewer, palm tree frost protection etc). Industrial grade self regulating heating cable. The cable output will adjust automatically based on the ambient temperature at each point along the cable. No worry about the overheat risk. More Safe. Can be used by straight, spiral and overlap. More functional.
- Protect pipes up to 2 1/2” in diameter. For a better freeze protection, at least 1/2 inch thick or thicker insulation material is recommended, especially for extremely cold weather. If the ambient temperature is lower than -20°F(-29°C), please use 1” thick insulation material.

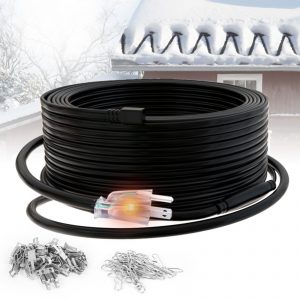

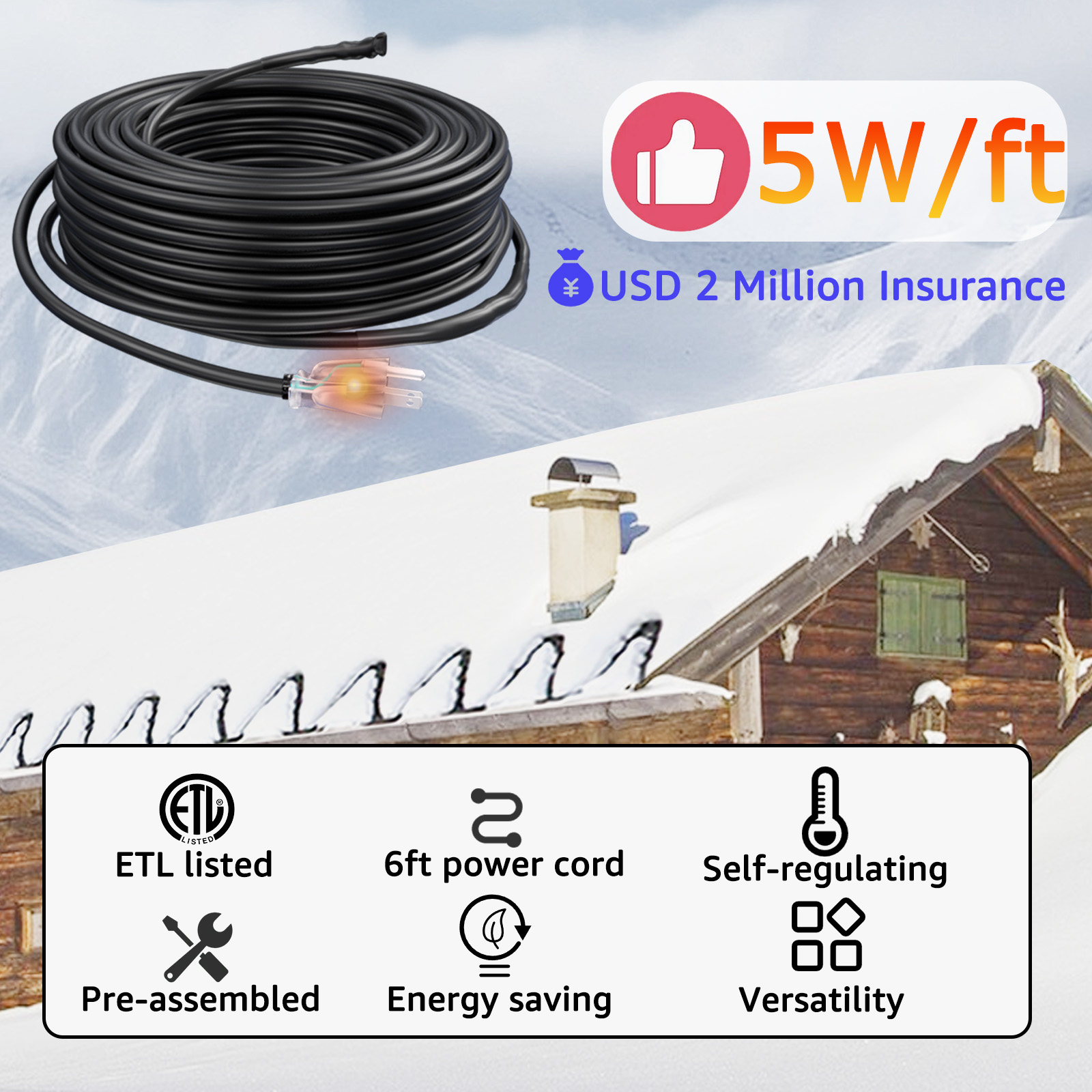

- Pre-assembled, including grounded plug with light. Easy to install install and use, without built in thermostat. 120 volt, 5 watts/ft at 50 degrees F for pipe freeze protection.

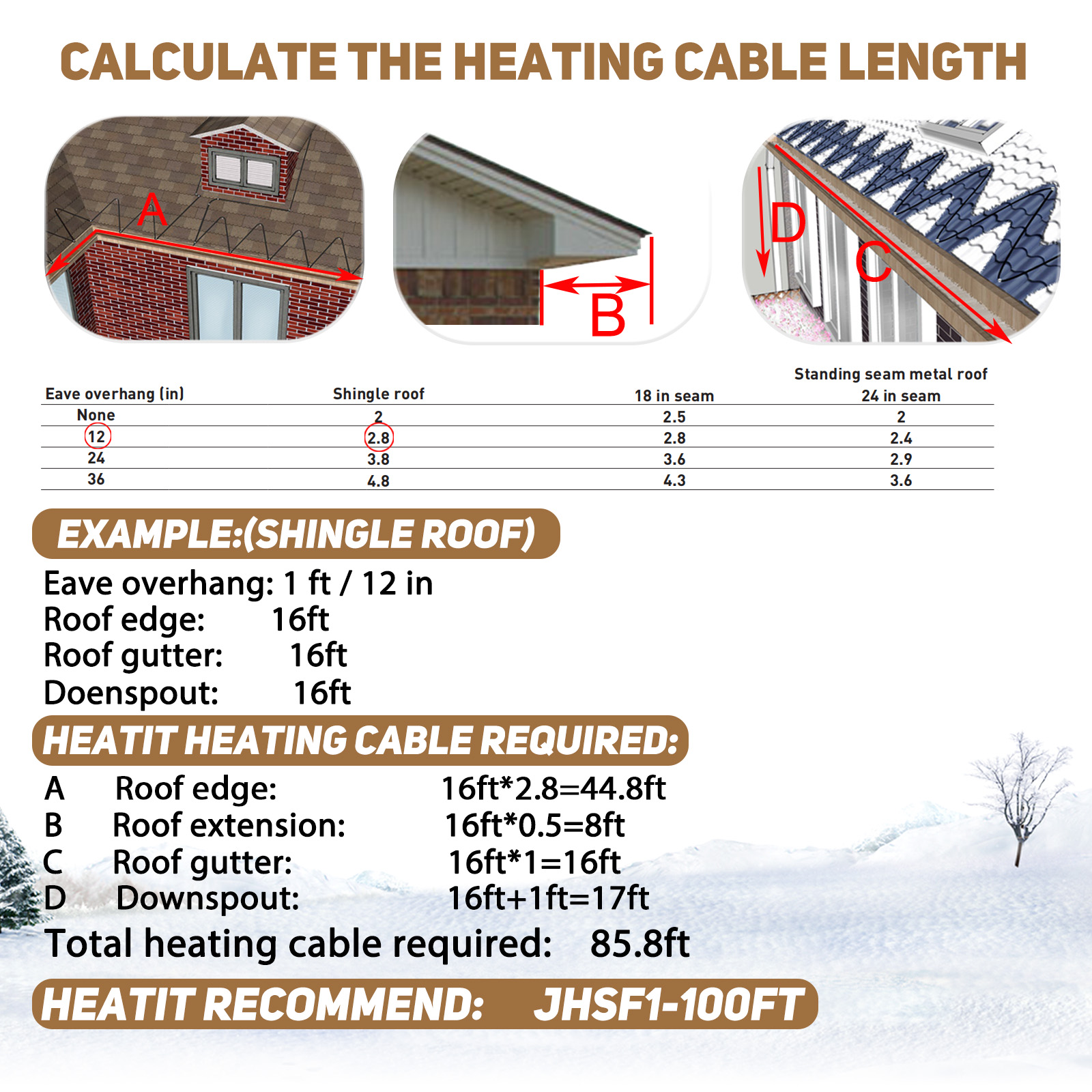

- Roof deicing application: Can be used on flat roofs, metal roofs, asphalt roofs, rubber roofs, slate roofs, stone roofs, metal roofs, ceramic roofs, composite (tar and gravel) roofs and so on. Rated 10W/ft at 32°F (0°C) for roof deicing. For roof deicing application, you may need to buy clips and hangers separately.
- Testing the cable before the installation. Uncoil the cable, plug in the heating cable. Normally you can feel the slight warm on the heating cable in few minutes. Two year limited warranty – If you are not completely satisfied with HEATIT heating cable, please feel free to contact us via info@heatitcable.com in any time, we’ll try our best to solve your issue.
- Sufficient heating cable inventory in warehouse of Chicago area. Normally order are shipped within 7 days after order released. Expediting delivery service is available.
- The ambient temperature during installation affects how much you can bend the cable, as it will become stiffer in colder temperatures. If you install when the temperature is 50ºF (10ºC) or above, you can bend the cable to a radius of 1/2”. However, if installing in colder temperatures, the following limits for bending radius must be observed:
- The minimum bending radius is 1/2” @ 50ºF (10ºC) or above.
- The minimum bending radius is 1” @ 32ºF (0ºC).
- The minimum bending radius is 1-1/8” @ -4ºF (-20ºC).
- The lowest installation temperature is -4ºF (-20ºC).
| size | 6-feet, 12-feet, 18-feet, 24-feet, 50-feet, 75-feet, 100-feet, 125-feet, 150-feet |
|---|

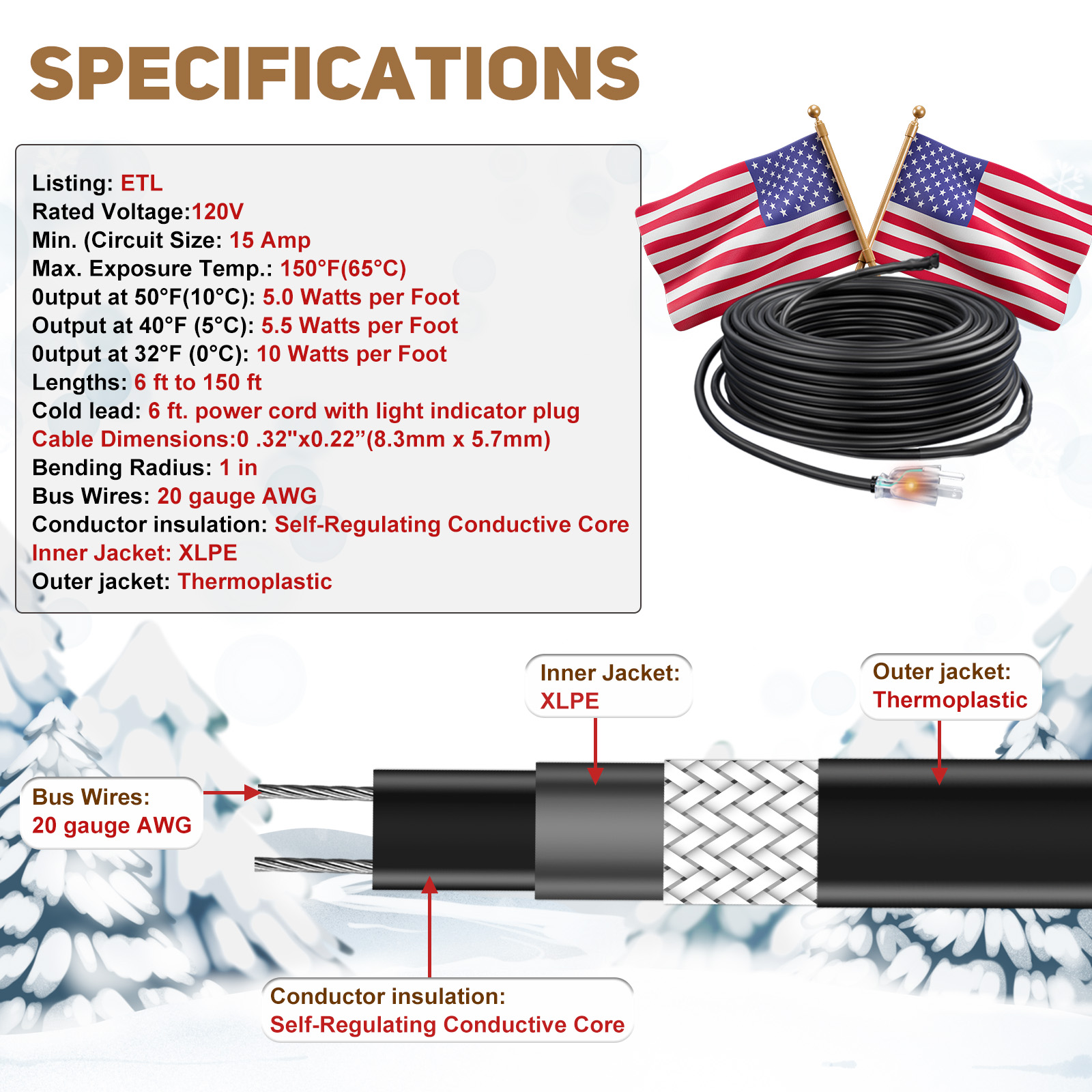

SPECIFICATION
| JHSF1 | JHSF | JHSF1-CT | HTM | HISD | |
| Available for pipe freezeing protection | ✓ | ✓ | ✓ | ✓ | ✓ |
| Available for roof deicing | ✓ | No | ✓ | No | No |
| Install by Spiral,Wrap or Cross | ✓ | ✓ | ✓ | ✓ | No |
| Build in thermostat | No | ✓ | No | No | ✓ |
| Cable Structure | Self regulating | Self regulating | Self regulating | Self regulating | Regular (Constant wattage) |
| Output @10°C | 5w/ft | 3w/ft | 5w/ft | 3w/ft | 7w/ft Constant |
| Used on not always water filled pipes | ✓ | ✓ | ✓ | ✓ | No |
| Length of cold lead | 3ft | 2ft | 6ft | No | 2ft |
| Water proof grade(end seal) | IP65 | IP65 | IP68 | IP65 | IP65 |
| Water proof grade(connection) | IP65 | IP65 | IP65 | IP65 | IP65 |
JHSF1 INSTRUCTION MANUALFAQ
Can this be used in a drain pipe that may have standing water at times?
JHSF1 was not designed for the under water application. For under water application, you may want to check HEATIT JHSF1-CT heat tape. JHSF1-CT owned the Fluoropolymer (Industrial grade: One of the most heavy duty plastic material) as the outer jacket. This out jacket makes the cable have a better water proof performance.
By the way Please keep the connection between the orange cold lead and black heating cable above the water. This connection water proof grade can meet IP65 and the end seal of this heating cable water proof can meet IP68.
Does the advertised length include the length of the lead cord or is it the length of the heated portion of the cord and the lead cord is additional?
For HEATIT JHSF1 heat trace, 3ft cold lead is additional. 24ft length didn’t include the cold lead length.
Shipping
* On hand inventory in US and Canada warehouses. It normally takes 1-3 business days for us to process your order. Please note that this does not include holidays and weekends.
* Shipment normally takes 5-10 business days to arrive, but can take up to 12-15 business days around busier periods such as holidays etc.
* Shipping time is estimated and commences from the date of shipping, rather than the date of the order, and can take longer than expected date due to an invalid address, customs clearance procedures or other causes.
* Please submit a ticket within 60 days of shipment if the package does not arrive in time, our representative will get back to you within 24 hours. Note that overdue requests may not be accepted.
