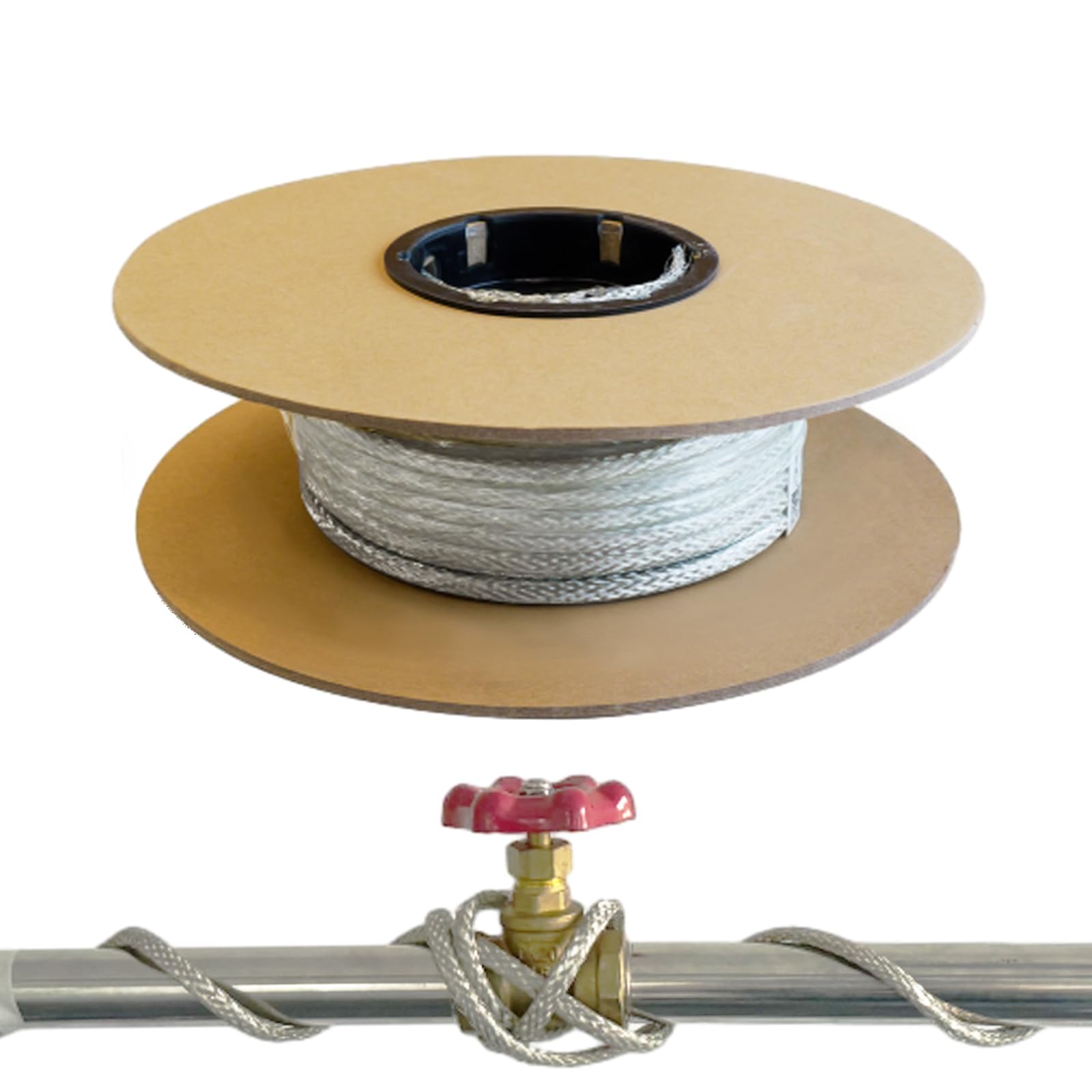

- HTM self-regulating pipe heating cable system is designed for mobile home and other dry applications etc. Can be used on residential metal or plastic water supply and drain pipe freezing protection.

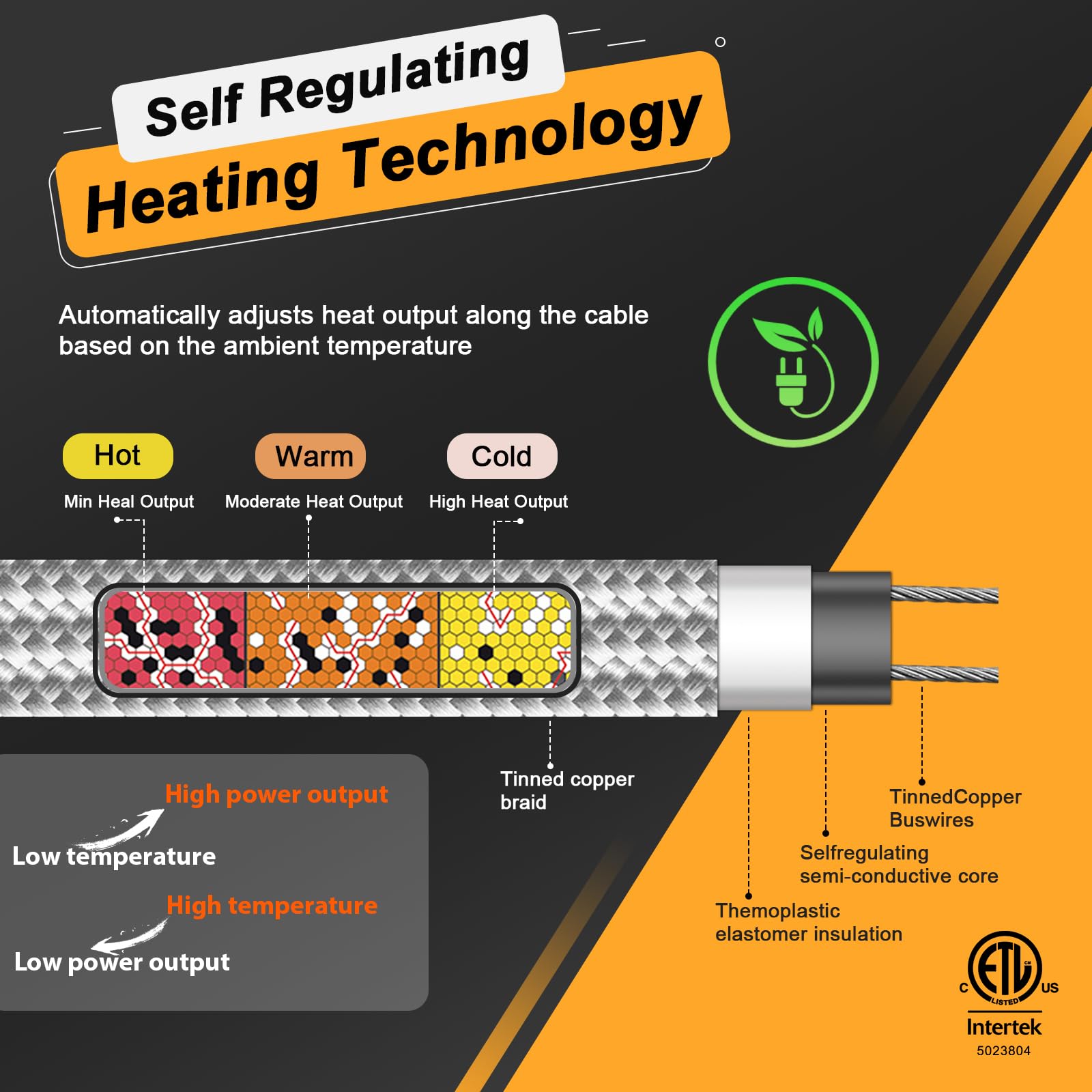

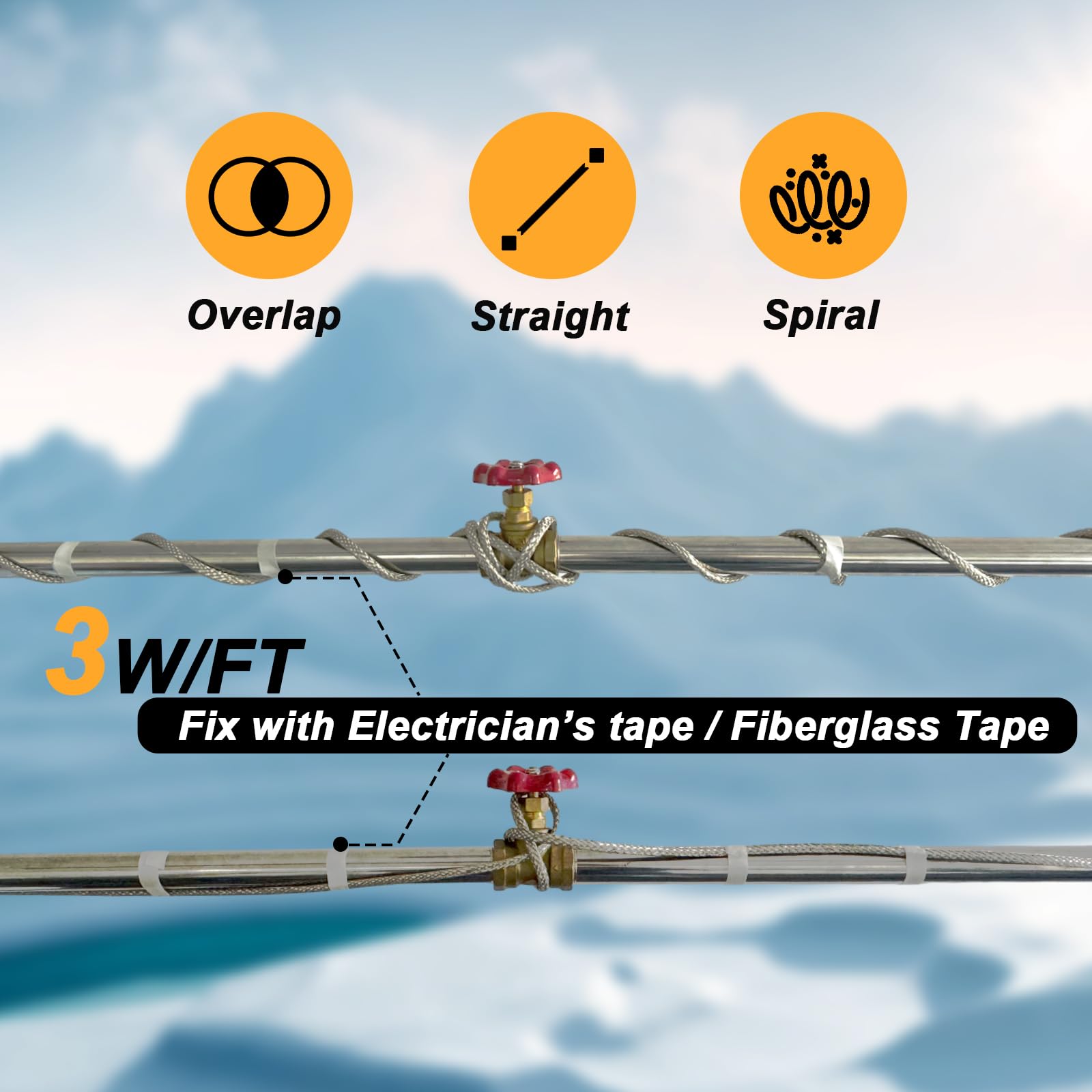

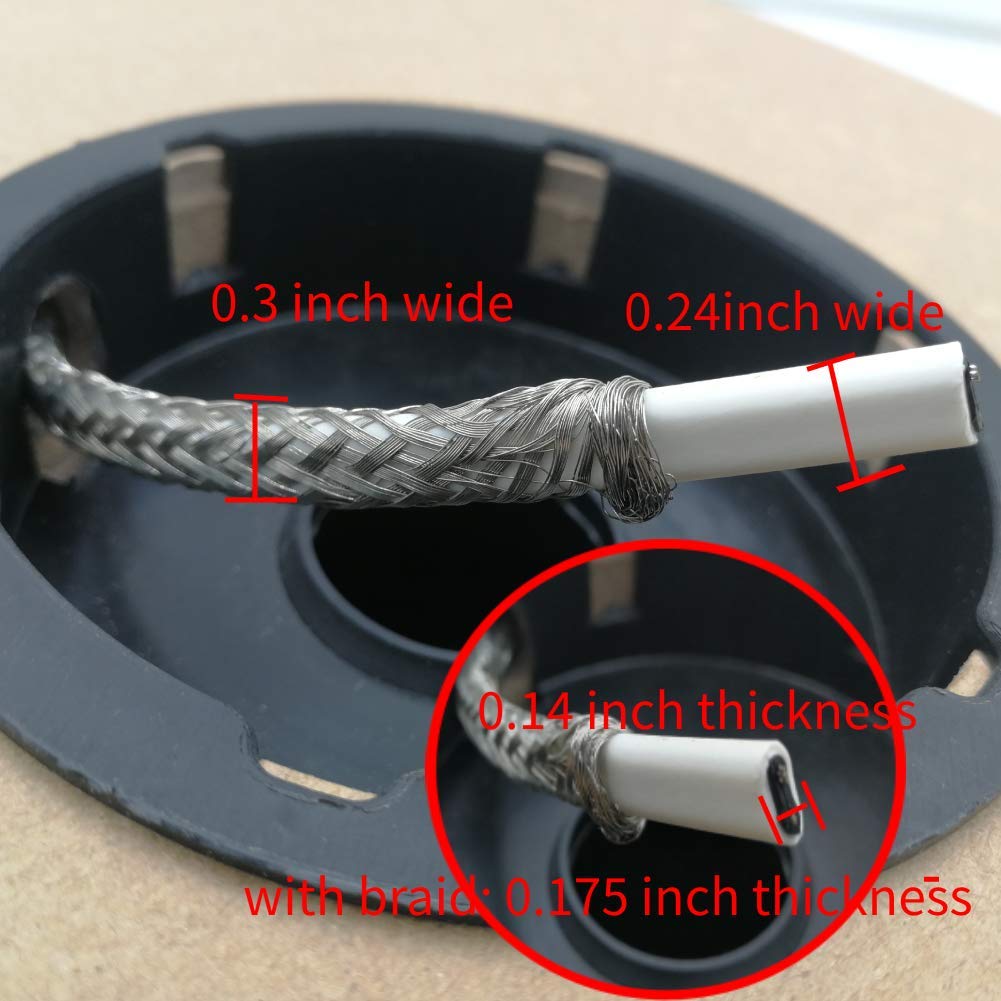

- Tinned copper braid as the out jacket as well as electrical ground. Self regulating heating cable just deliver the heat where is need. The cable output will adjust automatically based on the ambient temperature at each point along the cable. No worry about overheat risk. More Safe. Can be used by straight, spiral and overlap. More functional.
- Additional tools which you may need: High quality electrician’s tape such as HEATIT glass cloth tape, 1/2” thick fiberglass insulation with vapor seal, wire cutters or heavy scissors, Phillips#2 slotted screw drivers, Ruler or measuring tape.
- HEATIT HTM connection kit is necessary for the pipe freeze protection application. Please purchase this kit separately.
- Quick test: Once insulation is finished, plug the cable into a 120V AC outlet. Don’t use any of the water for about 1 hour. After that turn on the tap on HEATIT HTM protected pipe and test the water temperature. You should feel the slight warm from the water.
- Sufficient heating cable inventory in warehouse of Chicago area. Normally order are shipped within 7 days after order released. Expediting delivery service is available.
| size | 100-feet, 300-feet, 500-feet |
|---|
SPECIFICATIONS
| JHSF1 | JHSF | JHSF1-CT | HTM | HISD | |
| Available for pipe freezeing protection | ✓ | ✓ | ✓ | ✓ | ✓ |
| Available for roof deicing | ✓ | No | ✓ | No | No |
| Install by Spiral,Wrap or Cross | ✓ | ✓ | ✓ | ✓ | No |
| Build in thermostat | No | ✓ | No | No | ✓ |
| Cable Structure | Self regulating | Self regulating | Self regulating | Self regulating | Regular (Constant wattage) |
| Output @10°C | 5w/ft | 3w/ft | 5w/ft | 3w/ft | 7w/ft Constant |
| Used on not always water filled pipes | ✓ | ✓ | ✓ | ✓ | No |
| Length of cold lead | 3ft | 2ft | 6ft | No | 2ft |
| Water proof grade(end seal) | IP65 | IP65 | IP68 | IP65 | IP65 |
| Water proof grade(connection) | IP65 | IP65 | IP65 | IP65 | IP65 |
Shipping
* On hand inventory in US and Canada warehouses. It normally takes 1-3 business days for us to process your order. Please note that this does not include holidays and weekends.
* Shipment normally takes 5-10 business days to arrive, but can take up to 12-15 business days around busier periods such as holidays etc.
* Shipping time is estimated and commences from the date of shipping, rather than the date of the order, and can take longer than expected date due to an invalid address, customs clearance procedures or other causes.
* Please submit a ticket within 60 days of shipment if the package does not arrive in time, our representative will get back to you within 24 hours. Note that overdue requests may not be accepted.
